Name: Hytera-DMR Digital Walkie Talkie, Dual-time Slot, VOX, UHF, Ham, FM, Two Way Radio, BD500, BD505, DMR
SKU: Hytera-BD500
Price: 165 USD
Availability: InStock
Rating: 4.8 (0 reviews)

Hytera-DMR Digital Walkie Talkie, Dual-time Slot, VOX, UHF, Ham, FM, Two Way Radio, BD500, BD505, DMR

SKU: Hytera-BD500 Category: Hytera

Output Power(w): 0.5w-3w
Battery Capacity(mAh): 1500
Waterproof / Water-Resistant: IP55
Storage Channel: 48
Frequency Range: UHF VHF
Model Number: BD500
Walkie Talkie Type: Portable
Is_Display: No
Maximum Range: 5km-10km
Brand Name: Hytera
Origin: Mainland China

Features

* Dual-timeslot communication in DMO mode doubles efficiency

* Strong anti-interference capability

* Superior audio quality

* Digital-analog compatibility helps reduce cost

* User defined identification

* Voice revive ability frees your hands

* Military grade quality makes the radio robust and durable

– Compliant with MIL – STD – 810 C/D/E/F/G and IP54 standards

* Emergency alarm (programming via CPS)

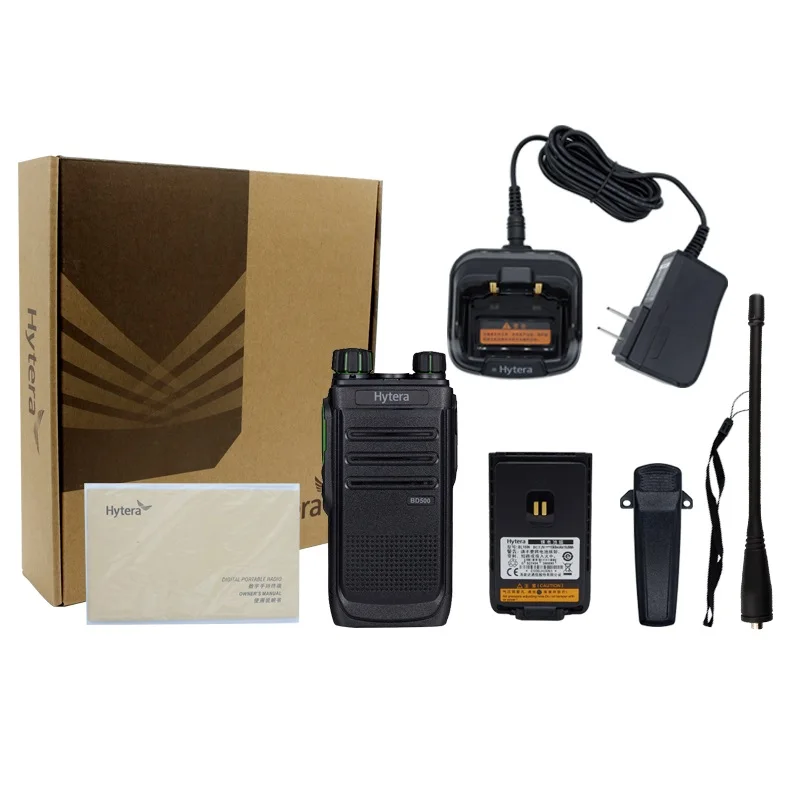

Standard Package

* Radio1 PCS

* Antenna1 PCS

* Li-ion Battery1 PCS

* Single Unit Charger1 PCS

* Switching Power Adapter1 PCS

* Nylon Strap1 PCS

* Belt Clip1 PCS

* Documentation Kit1PCS

Specifications

General

Frequency Range	UHF:400-470 MHz,350-400 MHz VHF:136-174 MHz
Channel Capacity	48
Zone Capacity	3
Channel Spacing	25/12.5KHz
Operating Voltage	7.2V
Battery	1500mAh(Li-ion) 2000mAh(Li-ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Analog: 12hours(1500mAh),16hours(2000mAh) Digital: 16hours(1500mAh),22hours(2000mAh)
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Dimensions(H×W×D) mm	108 × 54 × 29
Weight	240g (with AN0435W09 and BL1506)

Transmitter

RF Power Output	UHF High power:4W UHF Low power:1W VHF High power:5W VHF Low power:1W
FM Modulation	11K0F3E @ 12.5KHz 16K0F3E @ 25KHz
4FSK Digital Modulation	12.5KHz Data Only:7K60FXD 12.5KHz Data&Voice:7K60FXW
Conducted/Radiated Emission	-36dBm < 1GHz -30dBm > 1GHz
Modulation Limiting	±2.5KHz @ 12.5KHz ±5.0KHz @ 25KHz
FM Hum&Noise	40dB @ 12.5KHz 45dB @ 25KHz
Adjacent Channel Power	60dB @ 12.5KHz 70dB @25KHz
Audio Response	+1~-3dB
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™
Digital Protocol	ETSI-TS102 361-1,-2,-3

Receiver

Sensitivity(Analog)	0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD)
Sensitivity(Digital)	0.22μV/BER5%
Adjacent Channel Selectivity	TIA-603:60dB @ 12.5KHz/70dB @ 25KHz
Spurious Response Rejection	TIA-603:70dB @ 12.5 / 25KHz
Intermodulation	TIA-603:65dB @ 12.5/25KHz
Hum&Noise	40dB @ 12.5KHz 45dB @ 25KHz
Blocking	ETSI:84dB
Rated Audio Power Output	0.5W
Rated Audio Distortion	≤3%
Audio Response	+1~-3dB
Conducted Spurious Emission	<-57dBm

Environmental

Operating Temperature	-30℃~+60℃
Storage Temperature	-40℃~+85℃
ESD	IEC 61000-4-2(level 4) ±8kV(Contact) ±15kV(Air)
MIL Standard	MIL-STD-810 G
Humidity	Per MIL-STD-810 G Standard
Dust & Water Protection	IP54 standard
Shock & Vibration	Per MIL-STD-810 G Standard

-65%

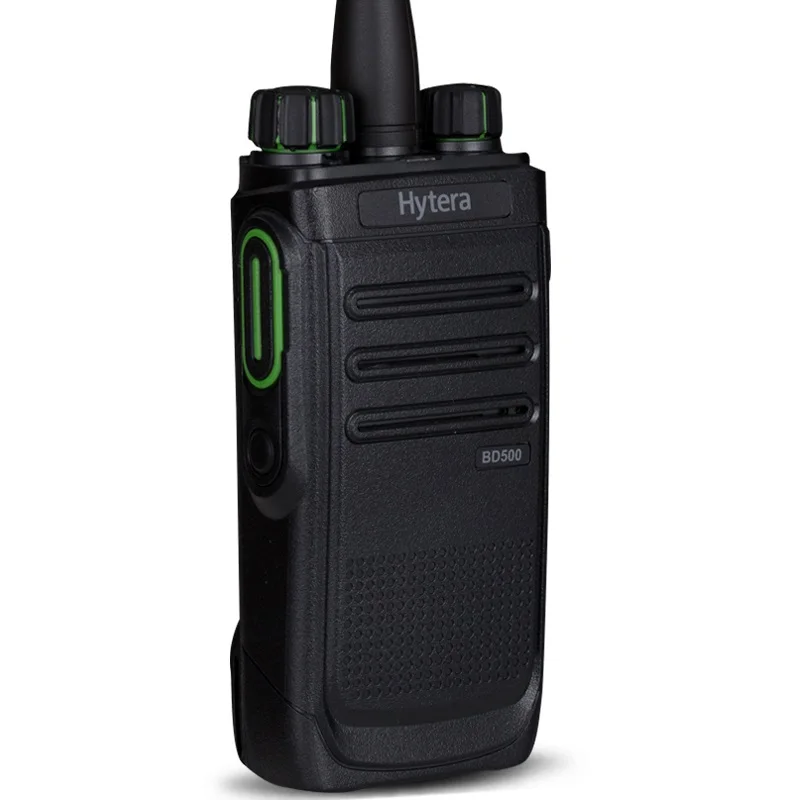

Hytera-DMR Digital Walkie Talkie, Dual-time Slot, VOX, UHF, Ham, FM, Two Way Radio, BD500, BD505, DMR

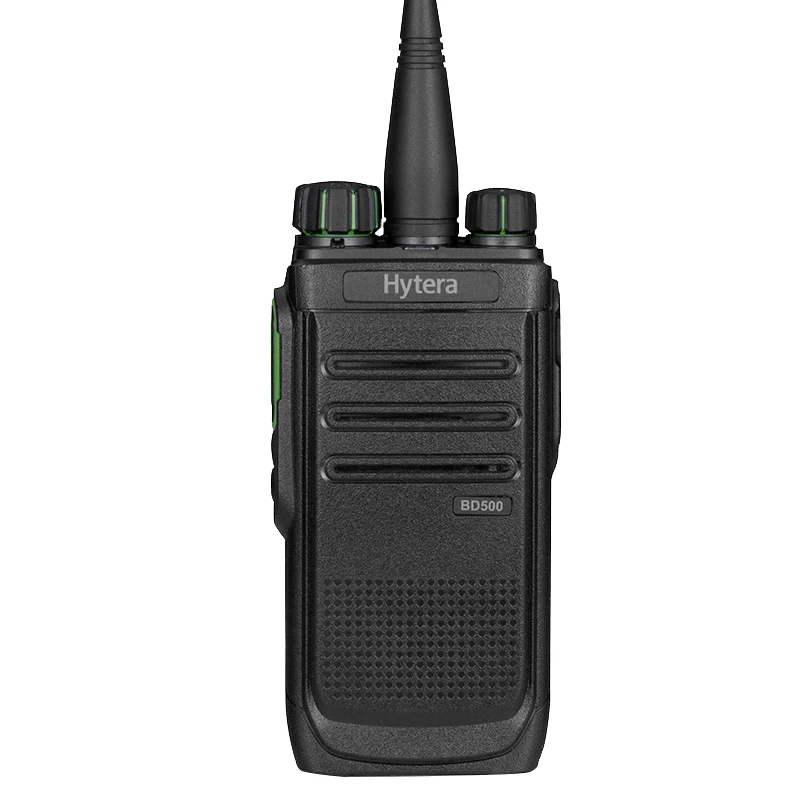

Hytera-DMR Digital Walkie Talkie, Dual-time Slot, VOX, UHF, Ham, FM, Two Way Radio, BD500, BD505, DMR - View 2

Click to enlarge

Hytera-DMR Digital Walkie Talkie, Dual-time Slot, VOX, UHF, Ham, FM, Two Way Radio, BD500, BD505, DMR - View 3

Price range: $165.00 through $195.00

Color

Clear

Add to compare

Add to wishlist

Description

Frequency Range	UHF:400-470 MHz,350-400 MHz VHF:136-174 MHz
Channel Capacity	48
Zone Capacity	3
Channel Spacing	25/12.5KHz
Operating Voltage	7.2V
Battery	1500mAh(Li-ion) 2000mAh(Li-ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Analog: 12hours(1500mAh),16hours(2000mAh) Digital: 16hours(1500mAh),22hours(2000mAh)
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Dimensions(H×W×D) mm	108 × 54 × 29
Weight	240g (with AN0435W09 and BL1506)

RF Power Output	UHF High power:4W UHF Low power:1W VHF High power:5W VHF Low power:1W
FM Modulation	11K0F3E @ 12.5KHz 16K0F3E @ 25KHz
4FSK Digital Modulation	12.5KHz Data Only:7K60FXD 12.5KHz Data&Voice:7K60FXW
Conducted/Radiated Emission	-36dBm < 1GHz -30dBm > 1GHz
Modulation Limiting	±2.5KHz @ 12.5KHz ±5.0KHz @ 25KHz
FM Hum&Noise	40dB @ 12.5KHz 45dB @ 25KHz
Adjacent Channel Power	60dB @ 12.5KHz 70dB @25KHz
Audio Response	+1~-3dB
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™
Digital Protocol	ETSI-TS102 361-1,-2,-3

Sensitivity(Analog)	0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD)
Sensitivity(Digital)	0.22μV/BER5%
Adjacent Channel Selectivity	TIA-603:60dB @ 12.5KHz/70dB @ 25KHz
Spurious Response Rejection	TIA-603:70dB @ 12.5 / 25KHz
Intermodulation	TIA-603:65dB @ 12.5/25KHz
Hum&Noise	40dB @ 12.5KHz 45dB @ 25KHz
Blocking	ETSI:84dB
Rated Audio Power Output	0.5W
Rated Audio Distortion	≤3%
Audio Response	+1~-3dB
Conducted Spurious Emission	<-57dBm

Operating Temperature	-30℃~+60℃
Storage Temperature	-40℃~+85℃
ESD	IEC 61000-4-2(level 4) ±8kV(Contact) ±15kV(Air)
MIL Standard	MIL-STD-810 G
Humidity	Per MIL-STD-810 G Standard
Dust & Water Protection	IP54 standard
Shock & Vibration	Per MIL-STD-810 G Standard

Detailed specifications available upon request. Contact our sales team for full technical documentation.
