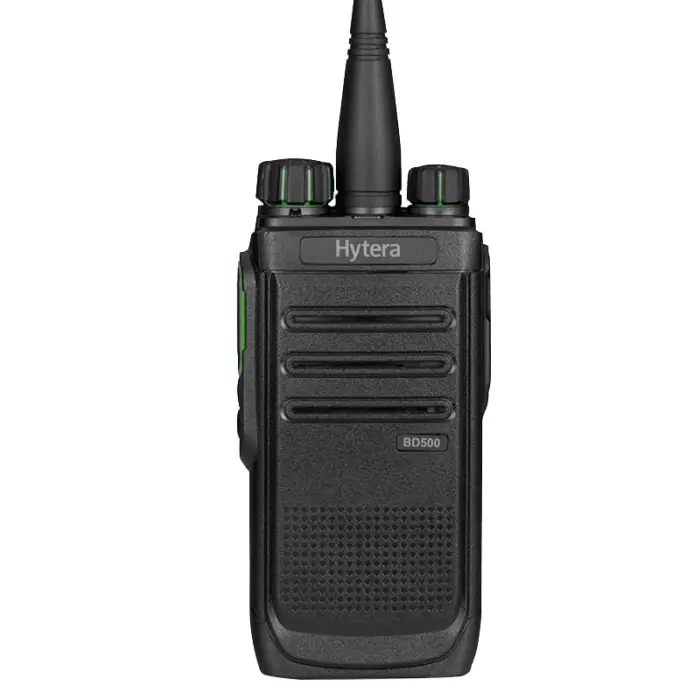

Walkie Talkie Digital DMR Hytera, Dual Slot, VOX, UHF, Radio Ham, FM, Radio Dua Arah, BD500, BD505
$165.00
Daya Keluaran (W): 0.5w-3w
Kapasitas Baterai (mAh): 1500
Tahan Air / Tahan Cipratan Air: IP55
Jumlah Kanal: 48
Rentang Frekuensi: UHF VHF
…
Daya Keluaran(w): 0.5w-3w
Kapasitas Baterai(mAh): 1500
Tahan Air / Anti Air: IP55
Kanal Penyimpanan: 48
Rentang Frekuensi: UHF VHF
Nomor Model: BD500
Tipe Walkie Talkie: Portabel
Is_Display: Tidak
Jarak Maksimum: 5km-10km
Nama Merek: Hytera
Asal: China Daratan
Fitur
* Komunikasi dual-timeslot dalam mode DMO menggandakan efisiensi
* Kemampuan anti-interferensi yang kuat
* Kualitas audio superior
* Kompatibilitas digital-analog membantu mengurangi biaya
* Identifikasi yang ditentukan pengguna
* Kemampuan voice revive membebaskan tangan Anda
* Kualitas kelas militer membuat radio kokoh dan tahan lama
– Sesuai dengan standar MIL – STD – 810 C/D/E/F/G dan IP54
* Alarm darurat (pemrograman melalui CPS)
Paket Standar
* Radio1 PCS
* Antena1 PCS
* Baterai Li-ion1 PCS
* Charger Unit Tunggal1 PCS
* Adaptor Daya Switching1 PCS
* Tali Nilon1 PCS
* Klip Sabuk1 PCS
* Paket Dokumentasi 1PCS
Spesifikasi
Umum
Rentang Frekuensi
UHF:400-470 MHz,350-400 MHz
VHF:136-174 MHz
Kapasitas Kanal
48
Kapasitas Zona
3
Jarak Kanal
25/12.5KHz
Tegangan Operasi
7.2V
Baterai
1500mAh (Li-ion)
2000mAh (Li-ion)
Umur Baterai (Siklus Kerja 5/5/90, Daya TX Tinggi)
Analog:
12 jam (1500mAh), 16 jam (2000mAh)
Digital:
16 jam (1500mAh), 22 jam (2000mAh)
Stabilitas Frekuensi
±0.5ppm
Impedansi Antena
50Ω
Dimensi (T×L×D) mm
108 × 54 × 29
Berat
240g (dengan AN0435W09 dan BL1506)
Pemancar
Daya Keluaran RF
Daya tinggi UHF: 4W
Daya rendah UHF: 1W
Daya tinggi VHF: 5W
Daya rendah VHF: 1W
Modulasi FM
11K0F3E @ 12.5KHz
16K0F3E @ 25KHz
Modulasi Digital 4FSK
12.5KHz Data Saja: 7K60FXD
12.5KHz Data&Suara: 7K60FXW
Emisi Konduksi/Radiasi
-36dBm < 1GHz
-30dBm > 1GHz
Batas Modulasi
±2.5KHz @ 12.5KHz
±5.0KHz @ 25KHz
Desis&Noise FM
40dB @ 12.5KHz
45dB @ 25KHz
Daya Kanal Berdekatan
60dB @ 12.5KHz
70dB @25KHz
Respon Audio
+1~-3dB
Distorsi Audio
≤3%
Jenis Vocoder Digital
AMBE+2™
Protokol Digital
ETSI-TS102 361-1,-2,-3
Penerima
Sensitivitas (Analog)
0.22μV (Khas) (12dB SIN AD)
0.4μV (20dB SIN AD)
Sensitivitas (Digital)
0.22μV/BER5%
Selektivitas Kanal Berdekatan
TIA-603:60dB @ 12.5KHz/70dB @ 25KHz
Penolakan Respon Spurious
TIA-603:70dB @ 12.5 / 25KHz
Intermodulasi
TIA-603:65dB @ 12.5/25KHz
Desis&Noise
40dB @ 12.5KHz
45dB @ 25KHz
Blocking
ETSI:84dB
Daya Keluaran Audio Terukur
0.5W
Distorsi Audio Terukur
≤3%
Respon Audio
+1~-3dB
Emisi Spurious Konduksi
<-57dBm
Lingkungan
Suhu Operasi
-30℃~+60℃
Suhu Penyimpanan
-40℃~+85℃
ESD
IEC 61000-4-2 (level 4)
±8kV (Kontak)
±15kV (Udara)
Standar MIL
MIL-STD-810 G
Kelembaban
Per Standar MIL-STD-810 G
Perlindungan Debu & Air
Standar IP54
Guncangan & Getaran
Per Standar MIL-STD-810 G
Frequently Asked Questions
How far does the Walkie Talkie Digital DMR Hytera, Dual S... reach?
In the real world, Hytera handhelds like this one hold a clear signal for about 2-4 miles in open country and maybe half a mile to a mile in a city or heavy woods. The box may claim more, but trees and buildings eat radio waves fast. If you need serious distance, a 4G PoC radio or a repeater setup is the honest answer.
Is the Walkie Talkie Digital DMR Hytera, Dual S... waterproof?
This Hytera model handles light rain and splashes, but it is not built to be submerged. If you need a fully waterproof radio, look for an IP67-rated unit in our two way radios range.
What battery life does the Walkie Talkie Digital DMR Hytera, Dual S... have?
Expect a full day of light use from a full charge, or 8-10 hours of heavy talking. Charging from the cradle takes roughly 2-4 hours. Check the batteries section if you want a spare.
Does the Walkie Talkie Digital DMR Hytera, Dual S... work with other walkie talkies?
Like most Hytera radios, this one talks to any other radio on the same frequency band and mode. If both units are analog and share the band, they will hear each other even across brands. Digital-only modes will not interop, so keep that in mind if you are mixing fleets.
Do I need a license to use the Walkie Talkie Digital DMR Hytera, Dual S...?
It depends on the band. FRS radios need no license in the US, while GMRS requires a $35 family license from the FCC. If the model is a commercial or amateur radio, a license or a business frequency is required. When in doubt, check the frequency range printed on the back label.
