SM26M1 Microfone Speaker for Hytera BD500 TD500 TD560 PD530 TD580 Transceiver Walkie Talkie Original
$59.00
Model Number: SM26M1
Item Type: SPEAKER
Origin: Mainland China
Original HYT SM26M1 Speaker IP54 waterproof Portable Microphone for Hyte…
- Número do modelo:SM26M1
- Tipo de item:SPEAKER
- Origem:Mainland China

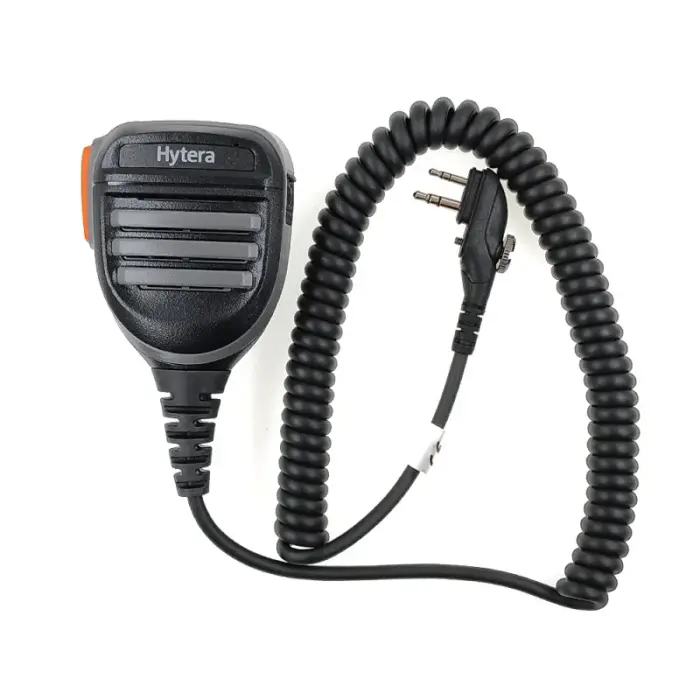

Original HYT SM26M1 Speaker IP54 waterproof Portable Microphone for Hytera BD500/TD500/TD560/PD530/TD580
Specifications of SM26M1
Specifications
Dimensions:76.85* 60.55* 34mm
Weight:about 160g
Color:black
PTT Key:available
Emergency Key:none
Accessory Interface:2.5mm
Connector:2-pin
Microphone Sensitivity:-42±3dB@1kHz 3.0V 2.2K,0dB=1V/Pa
Speaker Power:2W (rated); 3W (max.)
Speaker Impedance:20Ω±15%@1kHz
Speaker Frequency Response:97±3dB@1kHz at 2w/30cm
IP Rating:IP54
Operating Temperature:-30~60℃
Storage Temperature:-40~85℃
Standard package:
SM26M1 Microhone*1
Frequently Asked Questions
How far does the SM26M1 Microfone Speaker for Hytera BD50... reach?
In the real world, LUOTWO handhelds like this one hold a clear signal for about 2-4 miles in open country and maybe half a mile to a mile in a city or heavy woods. The box may claim more, but trees and buildings eat radio waves fast. If you need serious distance, a 4G PoC radio or a repeater setup is the honest answer.
Is the SM26M1 Microfone Speaker for Hytera BD50... waterproof?
Yes, this LUOTWO model is rated IP67 or better, so it survives rain, splashes and even a drop in shallow water. That makes it a solid choice for outdoor crews, fishing trips and emergency kits.
What battery life does the SM26M1 Microfone Speaker for Hytera BD50... have?
Expect a full day of light use from a full charge, or 8-10 hours of heavy talking. Charging from the cradle takes roughly 2-4 hours. Check the batteries section if you want a spare.
Does the SM26M1 Microfone Speaker for Hytera BD50... work with other walkie talkies?
Like most LUOTWO radios, this one talks to any other radio on the same frequency band and mode. If both units are analog and share the band, they will hear each other even across brands. Digital-only modes will not interop, so keep that in mind if you are mixing fleets.
Do I need a license to use the SM26M1 Microfone Speaker for Hytera BD50...?
It depends on the band. FRS radios need no license in the US, while GMRS requires a $35 family license from the FCC. If the model is a commercial or amateur radio, a license or a business frequency is required. When in doubt, check the frequency range printed on the back label.
