Baofeng UV-10R 10W Walkie Talkie – Long Range Type-C Portable Ham Radio 136-174 & 400-480MHz
Price range: $27.00 through $29.00
The Baofeng UV-10R is a powerful 10W walkie talkie designed for exceptional long-range communication, operating on frequencies of 136-174MHz and 400-480MHz. Its Type-C charging capability ensures faster and more convenient power replenishment. This lightweight and portable ham two-way radio boasts features like dual band, large capacity battery, and user-friendly interface, making it ideal for outdoor enthusiasts, emergency preparedness, and professional use. With its impressive range and various functionalities, the UV-10R stands out as a reliable tool for staying connected in any situation.
- Output Power(w): 5w-10w
- Battery Capacity(mAh): 8000
- Waterproof / Water-Resistant: IP45
- Material: Plastic
- Storage Channel: 128
- Frequency Range: 136-174MHZ&400-480MHZ
- Dimensions: 13cm*3cm*5.5cm
- Model Number: Baofeng UV-10R
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 5km-10km
- Brand Name: BAOFENG
- Origin: Mainland China
- Operating Voltage:: DC 7.4V
- FM radio: 65-108MHZ(Rx)
- Funciton: Type-C
★【FCC&CE】FCC certificate and programming guide under the Technical Specification; Baofeng UV-10R ham radio are authorized by Baofeng;
【Certificate Number:T.2020.12.0012】
【 ICE:62368-1:2014(second Edition)】
★【Long Range Communication】
Professional Ham Radio:
Frequency range:VHF:136-174MHz(RX/TX),UHF:400-480MHz(RX/TX)，Up to 128 channels.
Dual-band handheld transceiver with display function menu on the display “LCD”.
This solid 10W Power radio can reach further and receives strong signals.
★【Power Source】Rechargeable Li-ion Battery packs:Equipped with 1pack Original 8000mAh Battery +Battery Charger ,Support 24 hours continual communication.
★【VOX – Hands Free Function】Hands-free function,can clearly transmit voice in noisy situation, support you to talk in any where, take it easy with you.

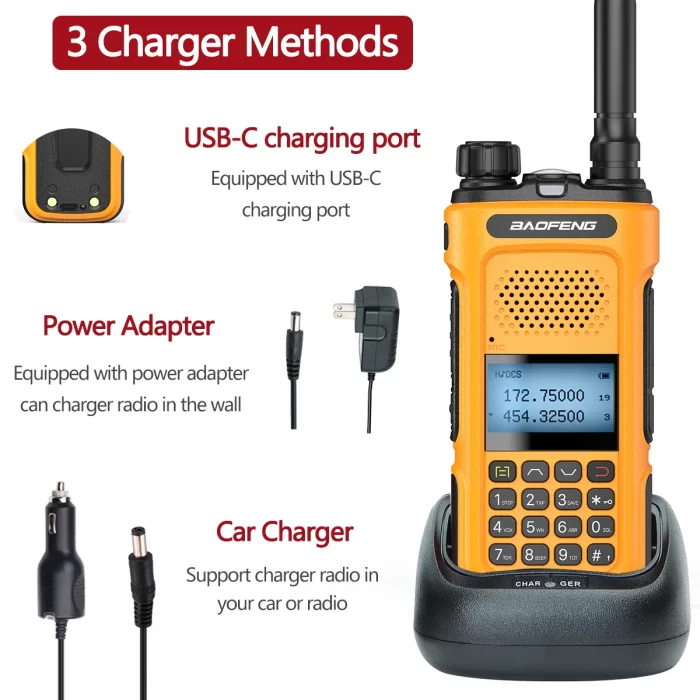

★【Slight And Portable】Equipped with type C charging port,LED flashlight,Charge LED：transmission(red)/reception(green);Standard size flexible use in the band.
Product Description:
|
All of our items are Brand New |
||
|
Model |
UV-10R |
|
|
Dual band /dual display / dual standby |
A/B band independent operation(UV UU VV) |
|
|
128 groups channels storage |
Shortcut menu operation mode |
|
|
Memory channels scan |
Time/ Carrier / Search Operation |
|
|
Emergency Alarm |
Indicator and flashlight Flashing Together |
|
|
Time-out Timer (TOT) |
15-600/Stepping 15 |
|
|
Squelch Level(SQL) |
0-9 Grade |
|
|
PTT & ANIID |
ON OFF/0-9;A-F |
|
|
Voice companding |
50 CTCSS/104 DCS |
|
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
|
DTMF ST function |
DT+ANI/ANI-ST/DT-ST/OFF |
|
|
Dual PTT |
Yes |
|
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
|
VOX function |
Yes |
OFF/1-10 |
|
1750HZ Tone |
Yes |
|
|
Busy lockout function |
Yes |
|
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Time-out Timer (TOT) function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Dual Standby |
Yes |
|
|
Battery voltage display function |
Yes |
|
|
Channel name display and editing functions |
Yes |
|
|
Signal strength indicator |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Built-in Led torch |
Yes |
|
|
FM radio |
Yes |
65-108MHZ(Reception) |
|
Emergency alarm function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
High/Low TX power selectable |
Yes |
10W |
|
ROGER SET |
Yes |
FULL/MGS |
|
Chinese and English voice prompt |
Yes |
|
|
Wire clone function |
Yes |
|
|
PC software programmable |
Yes |
|
|
General Specifications |
||
|
Frequency stability |
±2.5ppm |
|
|
Frequency Step |
2.5/5/6.25/10/12.5/20/25KHz |
|
|
Antenna Impedance |
50ohm |
|
|
Working temperature |
-20~+50°C |
|
|
Rated Voltage |
7.4V DC±10% |
|
|
Output power |
<= 10W |
|
|
Battery type |
Li-ion battery |
|
|
Battery capacity |
High Capacity |
|
|
Headphone jack type |
2 Pin Kenwood Plug |
|
|
Antenna Type |
SMA-(Male) |
|
|
Mode Of Operation |
Simplex Or Semi-duplex |
|
|
Weight |
130g(approximate) |
|
|
Dimension(LXWXH) |
130X55X30mm(Not Antenna) |
|
|
Transmitter |
||
|
Type Of Modulation |
16køF3E / 11køF3E |
|
|
Max frequency deviation |
< 5kHz(Wide)/< 2.5kHz(Narrow) |
|
|
Emissioncurrent |
<= 1.5A(5W) |
|
|
CTCSS / DCS |
0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow) |
|
|
Reception |
||
|
Sensitivity |
-122dBm(12dB SINAD) |
|
|
Audio Power |
1W |
|
|
Intermediation Distortion |
<10% |
|
|
Inter modulation |
>=65Db/>=60dB |
|
|
Spurious response |
65dB |
|
|
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |
|
|
Receiving Current |
<=380mA |
|
Package include:
1 X Portable radio
1 X Antenna
1 X Li-ion battery pack
1 X LI-ion charger
1 X Belt clip
1 X The Sling
1 X Headset
1 X User’s manual
(And other accessory depend on your choice in the link)
Baofeng UV-10R 10W Walkie Talkie: The Ultimate Communication Companion
Discover the power of instant communication with the Baofeng UV-10R Walkie Talkie. Engineered for enthusiasts and professionals alike, this 10W portable ham two-way radio is perfect for a variety of applications—from outdoor adventures to professional use.
Unmatched Communication Range
Operating on frequencies of 136-174MHz & 400-480MHz, the UV-10R delivers an impressive communication range, allowing users to stay connected even in remote locations. Whether you’re trekking through rugged mountains or managing events, enjoy clear and reliable communication without interruptions.
Advanced Charging Technology
Say goodbye to bulky chargers and long charging times! The UV-10R features Type-C charging, ensuring you can power up your device conveniently and swiftly. This modern charging capability not only enhances efficiency but also aligns with the latest technology trends, offering you a seamless experience.
Robust and Compact Design
Built to withstand the rigors of outdoor use, the UV-10R boasts a durable and portable design. Its lightweight construction means you can easily carry it on any adventure, ensuring you’re always equipped for instant communication.
Key Features
- Powerful 10W Output: Maximizes your communication range and clarity.
- Dual Band: Access a wider range of frequencies for more versatility.
- User-Friendly Interface: Easy operation suitable for all skill levels.
- VOX Function: Hands-free operation for enhanced convenience during critical tasks.
- Wide Compatibility: Ideal for personal, recreational, or business use.
Benefits & Value
The Baofeng UV-10R isn’t just a communication tool; it’s your lifeline in various situations. Here’s how it adds value:
- Reliable Communication: Perfect for emergency situations, ensuring you can always reach loved ones or colleagues.
- Enhanced Safety: Stay connected during outdoor activities, reducing risks and increasing peace of mind.
- Cost-Effective: A single purchase provides you with a powerful tool that replaces the need for multiple communication devices.
- Instant Connectivity: Facilitates quick and easy communication without the need for phone services.
Conclusion
The Baofeng UV-10R 10W Walkie Talkie is more than just a radio; it’s a gateway to better communication, safety, and convenience. Whether you are exploring the great outdoors, coordinating a large event, or simply ensuring you can stay in touch with loved ones, this two-way radio will exceed your expectations. Invest in the Baofeng UV-10R today and experience the freedom of reliable long-range communication!
