- Output Power(w):Â 25w-50w
- Battery Capacity(mAh):Â 0
- Waterproof / Water-Resistant:Â No
- Material:Â Metal
- Storage Channel:Â 200
- Frequency Range:Â 66-88MHz

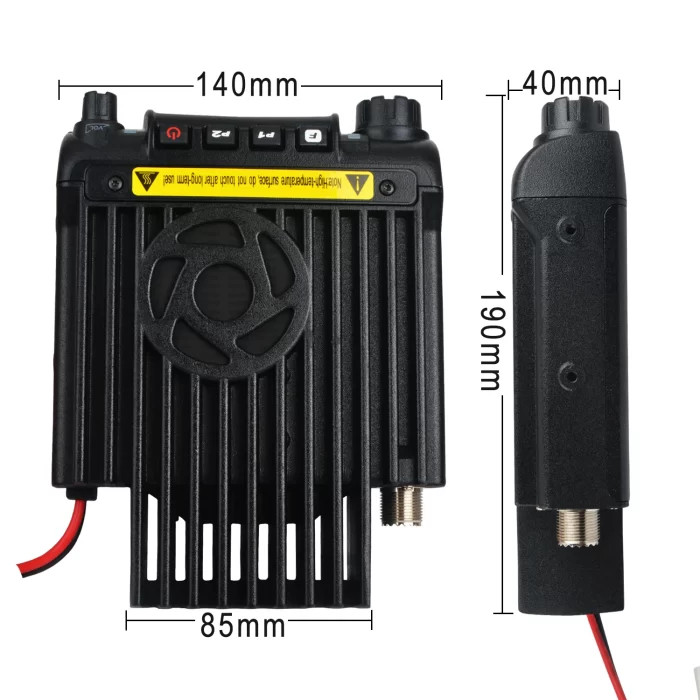

- Dimensions:Â 145(W)*47(H)*190(D)mm
- Model Number:Â TH-9000D
- Walkie Talkie Type:Â Car
- Is_Display:Â Yes
- Maximum Range:Â 10km-50km
- Origin:Â Mainland China
- Certification:Â CE,FCC
- Color:Â Black
- Net Weight:Â 1.2KG approx.
Features:
-66-88MHz Transmit and Receive both
-45/60Watt High/Medium/Low Output Power selectable
-200 programming memorized channels, identified by editing name
-Scrambler Function
-Program different CTCSS,DCS,2Tone,5 Tone in per channel, rejecting extra calling from other radios
-Using 5 Tone to send message,Emergency alarm, Call all, ANI, Remotely kill, Remotely waken etc
-Automatically calling Identification function by DTMF—ANI or 5 Tone—ANI
-Compander function for decrease the background noise and enhance audio clarity,it can set compander ON/OFF per channel
-Different band width per channel, 25K for wide band,20K for middle band, or 12.5K for narrow band
-Theft alarm provides extra safety
-Five programmable multi-functional keys, can set various shortcut operation according to different requirement
-1024 groups of DCS code improves the abiliting of rejecting extra calling
-Display on a Large LCD with adjustable brightness, convenient for nighttime use.
-DTMF,DTMF ANI, 2 Tone or 5 ToneSignaling
-Pilot Frequency
-setting step: 5 / 6.25 / 8.33 /10 / 12.5 / 15/20/25/30 / 50KHz
Specifications:
|
General |
||
|
Frequency Range |
66-88MHz |
|
|
Number of Memory Channels |
200 |
|
|
Channel Spacing |
25K (Wide Band),20K (Middle Band),12.5K (Narrow Band) |
|
|
Frequency Step |
5 / 6.25 / 8.33 / 10 / 12.5 / 15/20/25/30 |
|
|
Operating Voltage |
13.8V DC±15% |
|
|
Squelch |
Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
|
|
Frequency Stability |
±2.5ppm |
|
|
Operating Temperature |
-20~+60°C |
|
|
Dimensions |
145(W)*47(H)*190(D)mm |
|
|
Weight |
About 1.2kg |
|
|
Receiver (ETSI EN300 086 Standard Testing) |
||
|
Wide Band |
Narrow Band |
|
|
Sensitivity(12dB SINAD) |
≤0.25µV |
0.35µV |
|
Adjacent Channel Selectivity |
≥70dB |
≥60dB |
|
Intermodulation |
≥65dB |
≥60dB |
|
Spurious Rejection |
≥70 |
≥70dB |
|
Audio Response |
+1~-3dB(0.3-3KHz) |
+1~-3dB(0.3-2.55KHz) |
|
Hum & Noise |
≥45dB |
≥40dB |
|
Audio distortion |
≤5% |
|
|
Audio Power Output |
>2W @10% |
|
|
Transmitter (ETSI EN 300 086 Standard Testing) |
||
|
Wide Band |
Narrow Band |
|
|
Power Output |
45W(H)/25W(M)/10W(L) |
|
|
Modulation |
16KØ F3E |
11KØ F3E |
|
Adjacent Channel Power |
≥70dB |
≥60dB |
|
Hum & Noise |
≥40dB |
≥36dB |
|
Spurious Emission |
≥60dB |
≥60dB |
|
Audio Response |
+1~-3dB(0.3-3KHz) |
+1~-3Db(0.3~2.55KHz) |
|
Audio Distortion |
≤5% |
|
Package Contains:
1× TYT TH-9000D 66-88MHz Mobile Radio
1× DTMF Hand Microphone
1× Mobile Mounting Bracket
1× DC Power Cable with Fuse
8× Screws
2× Fuses
1× English Users Manual
