Baofeng UV-X10 Walkie Talkie – 15W Long Range Dual Band Radio with USB Charger – Upgrade Your UV-5R K5 Ham Experience
Price range: $27.00 through $37.00
The Baofeng UV-X10 is a powerful 15W walkie talkie designed for long-range communication, equipped with tri-power settings for adjustable output. This dual-band device offers enhanced functionality as a ham two-way radio and includes a USB charger for convenient power options. Upgrade from the popular UV-5R with improved high power and performance, making it ideal for outdoor adventures, emergency situations, and various professional uses. Its compact design and robust features, coupled with reliable connectivity, set it apart as a top choice for enthusiasts and professionals alike.
- Output Power(w):Â 5w-10w
- Battery Capacity(mAh):Â High Capacity
- Waterproof / Water-Resistant:Â No
- Material:Â Plastic
- Storage Channel:Â 128
- Frequency Range:Â 136-174MHz & 400-520MHz
- Dimensions:Â 58mmX110mmX32mm
- Model Number:Â BAOFENG UV-X10
- Walkie Talkie Type:Â Portable
- Is_Display:Â Yes
- Maximum Range:Â 5km-10km
- Brand Name:Â BAOFENG
- Origin:Â Mainland China
- Certification:Â CE,FCC
-
Tri-Power Low / Medium / High Settings .
-
Frequency Range: 65-108MHz (FM Receive only),136-174MHZ and 400-520MHZ (TX/RX).
-
25KHz/12.5KHz Switchable (Wide /Narrow) Band.
-
Dual-Band Handheld transceiver with LCD display
-
And 2-PTT Button, So pls use 2-PTT Headset and PTT Speaker Mic
Description:
|
All of our items are Brand New |
||
|
Model |
UV-X10Â Radio15W 8800mAh Walkie Talkie |
|
|
Dual band /dual display / dual standby |
A/B band independent operation(UV UU VV) |
|
|
128 groups channels storage |
Shortcut menu operation mode |
|
|
Memory channels scan |
Time/ Carrier / Search Operation |
|
|
Emergency Alarm |
Indicator and flashlight Flashing Together |
|
|
Time-out Timer (TOT) |
15-600/Stepping 15 |
|
|
Squelch Level(SQL) |
0-9 Grade |
|
|
PTT & ANIID |
ON OFF/0-9;A-F |
|
|
Voice companding |
50 CTCSS/105 DCS |
|
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
|
DTMF ST function |
DT+ANI/ANI-ST/DT-ST/OFF |
|
|
Dual PTT |
Yes |
|
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
|
VOX function |
Yes |
OFF/1-10 |
|
1750HZ Tone |
Yes |
|
|
Busy lockout function |
Yes |
|
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Time-out Timer (TOT) function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Dual Standby |
Yes |
|
|
Battery voltage display function |
Yes |
|
|
Channel name display and editing functions |
Yes |
|
|
Signal strength indicator |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Built-in Led torch |
Yes |
|
|
FM radio |
Yes |
65-108MHZ(Reception) |
|
Emergency alarm function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
High/Low TX power selectable |
Yes |
10W/4W/1W |
|
ROGER SET |
Yes |
FULL/MGS |
|
Chinese and English voice prompt |
Yes |
|
|
Wire clone function |
Yes |
|
|
PC software programmable |
Yes |
|
|
General Specifications |
||
|
Frequency stability |
±2.5ppm |
|
|
Frequency Step |
2.5/5/6.25/10/12.5/20/25KHz |
|
|
Antenna Impedance |
50ohm |
|
|
Working temperature |
-20~+50°C |
|
|
Rated Voltage |
7.4V DC±10% |
|
|
Output power |
<= 15W |
|
|
Battery type |
Li-ion battery |
|
|
Battery capacity |
8800mAh |
|
|
Headphone jack type |
2 Pin Kenwood Plug |
|
|
Antenna Type |
SMA-F(Female) |
|
|
Mode Of Operation |
Simplex Or Semi-duplex |
|
|
Weight |
588g |
|
|
Dimension(LXWXH) |
286mmX52mmX30mm(Include Antenna) |
|
|
Transmitter |
||
|
Type Of Modulation |
16køF3E / 11køF3E |
|
|
Max frequency deviation |
< 5kHz(Wide)/< 2.5kHz(Narrow) |
|
|
Emissioncurrent |
<= 1.5A(5W) |
|
|
CTCSS / DCS |
0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow) |
|
|
Reception |
||
|
Sensitivity |
-122dBm(12dB SINAD) |
|
|
Audio Power |
1W |
|
|
Intermediation Distortion |
<10% |
|
|
Inter modulation |
>=65Db/>=60dB |
|
|
Spurious response |
65dB |
|
|
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |
|
|
Receiving Current |
<=380mA |
|
Factory standard:

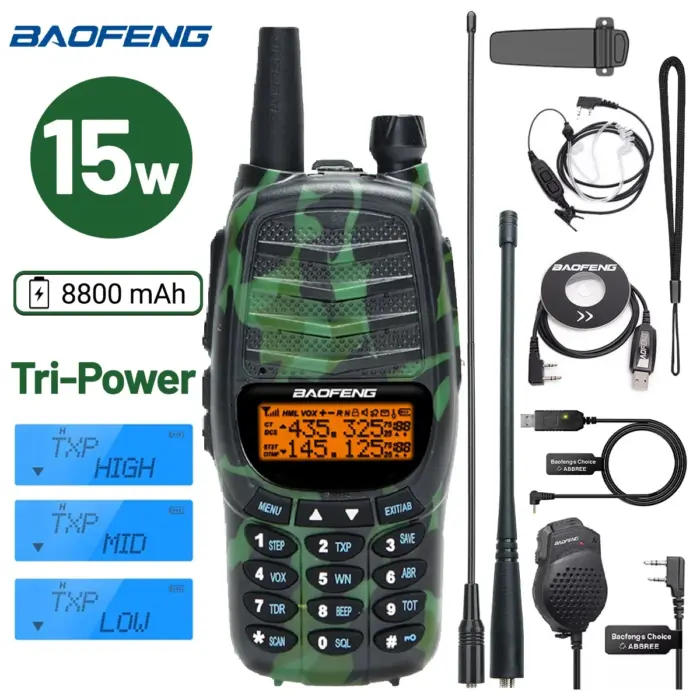

1 X UV-X10Â radio
1 X Antenna
1 X Li-ion batteryÂ
1 XÂ Adapter
1 X LI-ion charger
1 X Belt clip
1 X The Sling
1 X User’s manual Â
Baofeng UV-X10 15W Walkie Talkie: Your Ultimate Communication Companion
Unlock the power of communication with the Baofeng UV-X10 15W Walkie Talkie, an advanced dual-band ham radio designed for enthusiasts and professionals alike. With its remarkable range and versatility, it is your perfect partner for outdoor adventures, emergency preparedness, and daily operations. Step into a world where connectivity knows no bounds!
Key Features
- High Power Output: Boasting a robust 15W maximum output, the UV-X10 ensures extended communication over long distances, making it ideal for both urban and rural environments.
- Tri-Power Options: Choose between high, medium, or low power settings, allowing you to optimize battery life without sacrificing performance based on your needs.
- Dual Band Functionality: Operate seamlessly on both VHF (136-174 MHz) and UHF (400-520 MHz) frequencies, giving you flexibility and access to a wider range of channels.
- USB Charging: Stay powered up with the convenient USB charging capability, ensuring that you can recharge your device anytime, anywhere, using your laptop, power bank, or car charger.
- Upgraded Features: The UV-X10 comes equipped with enhancements over the UV-5R and K5 models, including improved sound quality, extended battery capacity, and ergonomic design for a comfortable grip.
Benefits of the Baofeng UV-X10
With the UV-X10 in your hands, you gain access to a host of benefits designed to enhance your experience:
- Reliable Communication: Ensure your voice is heard loud and clear, even in remote locations where cell service may fail.
- Versatile Use Cases: Perfect for camping, hiking, construction sites, or any scenario where reliable communication is essential.
- Emergency Preparedness: Be ready for any situation with a powerful radio at your disposal, providing peace of mind in times of need.
- Cost-Effective: Enjoy the advantages of ham radio communication without breaking the bank, making it a smart investment for anyone looking to enhance their connectivity.
Why Choose the Baofeng UV-X10?
The Baofeng UV-X10 stands out not just for its technical specifications but for the value it brings to communication enthusiasts and everyday users. Its robust design, coupled with premium features, ensures you have a reliable tool at your fingertips that can tackle any challenge. Whether you are exploring new terrains, working in challenging environments, or staying connected with loved ones, the UV-X10 will exceed your expectations.
Don’t let distance be a barrier to your communication. With the Baofeng UV-X10 Walkie Talkie, amplify your interactions and navigate the world with confidence. Order yours today and step into a better-connected tomorrow!
