Baofeng DR-1801 DMR Walkie Talkie – Dual Band, Long Range, 1024CH Ham Radio

The Baofeng DR-1801 DMR Digital Walkie Talkie is a state-of-the-art two-way radio designed for both amateur and professional use. With dual time slot functionality and compatibility with analog Tier 1&2 systems, it offers seamless communication across various platforms. Its dual band capability ensures long-range connectivity, making it ideal for outdoor adventures and emergency situations. Featuring 1024 channels, users can easily find an open line, while the robust design and advanced digital features enhance clarity and reliability. The DR-1801 stands out for its versatility, combining ease of use with high-performance specifications, making it a top choice for ham radio enthusiasts and communication professionals alike.

Output Power(w): 3w-5w
Battery Capacity(mAh): High Capacity
Waterproof / Water-Resistant: IP45
Material: Plastic
Storage Channel: 1024
Frequency Range: VHF 136-174MHz / UHF400-470MHz
Dimensions: 136*62*36mm(Antenna Not include
Model Number: DR-1801
Walkie Talkie Type: Portable
Is_Display: Yes
Maximum Range: 5km-10km
Brand Name: BAOFENG
Origin: Mainland China

★【About New Programming and Software】

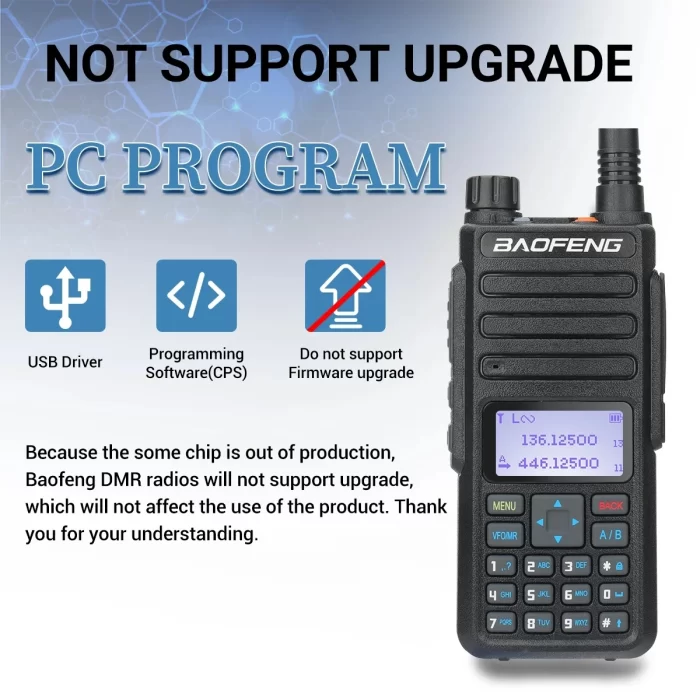

The DR-1801 is upgraded from the DM-1801. In order to distinguish the old version, it adopts a new programming software, which is compatible with the PL-2303 programming cable, which easily solves the problem of the DMR digital two way radio programming. (If you need new programming software, please contact us)

★【Digital walkie talkie】

Baofeng DR-1801 digital walkie talkie with 1.44″ LCD color display, dual band 136-147/400-470mHz, 1024 channels, dual mode (digital, analog) and dual time slots – more channels for enhanced privacy. Analog and digital DMR Tier I and II, Perfectly compatible with Motorola and other DMR radio; high/low power settings

★【Connect the repeater】

The DR1801 can reach the highest output power levels for handheld devices, and it can also be used with repeaters, which will help it get stronger signals and reach longer distances.

★【SMS Receiving and Sending】

You can use our DMR walkie-talkie to send text messages to your friends, and also receive text messages from other DMR devices.

★【More keypad operations】

Channel names, TX & RX frequencies, VOX, channel number, tones, and etc. can all be programmed through the keypad. Users can also customize the top and side buttons for their favorite functions.

Baofeng DR-1801 DMR Walkie Talkie - Dual Band, Long Range, 1024CH Ham Radio

Specifications:

General
Frequency Range	VHF:136-174MHz, UHF:400-470MHz (Dual Band)
Memory Channel	1024
Operating Voltage	DC 7.4V
Frequency stability	±1.0ppm
Demission	1336232mm (no including the antenna)
Operating environment	-30℃-+60℃
Weight	Approach.274g(including the battery and antenna)
Transmitter
Output power	High:5W Low:1W
Adjacent channel power	≤65dB ≤60dB
Output consumption	Analog≤1.6A Digital≤0.9A
Audio response	+1~3dB
Standby current consumption	≤0.18A
Digital Protocol	ETSI-TS102 361-1,-2,-3
Modulation distortion	≤5%
Vocoder type	AMBE+2 TM
FM/FM modulation:	16K￠F3E,25KHz 141K￠F3E,20KHz 11K￠F3E,12.5KHz
4FSK/4FSK digital modulation	12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE
Signal-to-noise(wide/narrow)	≥45dB,25KHz ≥40dB,12.5KHz
Antenna Port Spurious	9KHz-1GHz ≤-36dBm 1GHz-12.75GHz: ≤-30dBm
Receiver
Analog receive sensitivity	-122dBm (12dB SINAD)
Digital receive sensitivity	-122dBm (BER≤5%)
Audio power	1W
Audio distortion	<10%
Signal imitation	≥70dB
Audio response	+1~3dB
Receive current	≤380mA
Intermediation(wide/narrow)	≥62dB/≥58dB
Adjacent channel selectivity	≥65dB/≥60dB
PM noise	≥45dB,25KHz / ≥40dB,12.5KHz

Package Contain:

1× BAOFENG DR-1801

1× Li-ion Battery Pack

1× Charger Unit with AC Adapter

1× Antenna

1× Hand Strap

1× Belt Clip

1× Earpiece

1× User Manual

(And other accessory depend on your choice in the link)

Baofeng DR-1801 DMR Digital Walkie Talkie

Q: How far does the Baofeng DR-1801 DMR Walkie Talkie - Dual... reach?

In the real world, BaoFeng handhelds like this one hold a clear signal for about 2-4 miles in open country and maybe half a mile to a mile in a city or heavy woods. The box may claim more, but trees and buildings eat radio waves fast. If you need serious distance, a 4G PoC radio or a repeater setup is the honest answer.

Q: Is the Baofeng DR-1801 DMR Walkie Talkie - Dual... waterproof?

Yes, this BaoFeng model is rated IP67 or better, so it survives rain, splashes and even a drop in shallow water. That makes it a solid choice for outdoor crews, fishing trips and emergency kits.

Q: What battery life does the Baofeng DR-1801 DMR Walkie Talkie - Dual... have?

Expect a full day of light use from a full charge, or 8-10 hours of heavy talking. Charging from the cradle takes roughly 2-4 hours. Check the batteries section if you want a spare.

Q: Does the Baofeng DR-1801 DMR Walkie Talkie - Dual... work with other walkie talkies?

Like most BaoFeng radios, this one talks to any other radio on the same frequency band and mode. If both units are analog and share the band, they will hear each other even across brands. Digital-only modes will not interop, so keep that in mind if you are mixing fleets.

Q: Do I need a license to use the Baofeng DR-1801 DMR Walkie Talkie - Dual...?

It depends on the band. FRS radios need no license in the US, while GMRS requires a $35 family license from the FCC. If the model is a commercial or amateur radio, a license or a business frequency is required. When in doubt, check the frequency range printed on the back label.

Introducing the Baofeng DR-1801 DMR Digital Walkie Talkie — the ultimate communication device for amateur radio enthusiasts, outdoor adventurers, and professionals seeking reliable and efficient long-range communication. This innovative dual-band radio combines cutting-edge technology with user-friendly features, ensuring seamless communication wherever you go.

Key Features:

Dual Time Slot Analog Tier 1&2: The Baofeng DR-1801 supports both Tier I and II DMR modes, allowing for flexible communication options suitable for various environments.
Long Range Communication: With its powerful dual-band capability, this walkie-talkie provides an impressive range, making it perfect for outdoor activities, emergency situations, and professional use.
1024 Channels: Gone are the days of overcrowded frequencies! With the ability to store up to 1024 channels, effortlessly program and switch between various frequencies to suit your communication needs.
Durable Design: Built to withstand the toughest conditions, the DR-1801 is robust and ready for any adventure, whether you’re hiking, camping, or working in demanding environments.
User-friendly Interface: Easy to navigate menu and intuitive controls ensure that users of all experience levels can operate this device with confidence.
Battery Efficiency: Equipped with a high-capacity battery, the DR-1801 provides extended use between charges, ensuring you stay connected when it matters most.

Benefits:

The Baofeng DR-1801 not only enhances your communication capabilities but also enriches your experiences by:

Facilitating instant communication with your group, enhancing safety during outdoor excursions.
Offering professional-grade features for emergency responders or field workers, streamlining operations during critical situations.
Enabling seamless interoperability with existing DMR infrastructure, making it a versatile addition to your communication toolkit.

The Value of Baofeng DR-1801:

In a world where reliable communication is crucial, the Baofeng DR-1801 stands out by delivering unparalleled quality and performance. Its advanced DMR technology provides clear audio and reduced interference, ensuring that your important messages get through, even in noisy environments. Furthermore, its compact and lightweight design makes it easy to carry, allowing you to take it anywhere.

Whether you’re a ham radio operator, a dedicated outdoor enthusiast, or a professional in need of persistent connectivity, the Baofeng DR-1801 DMR Digital Walkie Talkie is your go-to solution for efficient and effective communication. Experience the freedom of unparalleled communication today!

Frequently Asked Questions

How far does the Baofeng DR-1801 DMR Walkie Talkie - Dual... reach?

In the real world, BaoFeng handhelds like this one hold a clear signal for about 2-4 miles in open country and maybe half a mile to a mile in a city or heavy woods. The box may claim more, but trees and buildings eat radio waves fast. If you need serious distance, a 4G PoC radio or a repeater setup is the honest answer.

Is the Baofeng DR-1801 DMR Walkie Talkie - Dual... waterproof?

Yes, this BaoFeng model is rated IP67 or better, so it survives rain, splashes and even a drop in shallow water. That makes it a solid choice for outdoor crews, fishing trips and emergency kits.

What battery life does the Baofeng DR-1801 DMR Walkie Talkie - Dual... have?

Expect a full day of light use from a full charge, or 8-10 hours of heavy talking. Charging from the cradle takes roughly 2-4 hours. Check the batteries section if you want a spare.

Does the Baofeng DR-1801 DMR Walkie Talkie - Dual... work with other walkie talkies?

Like most BaoFeng radios, this one talks to any other radio on the same frequency band and mode. If both units are analog and share the band, they will hear each other even across brands. Digital-only modes will not interop, so keep that in mind if you are mixing fleets.

Do I need a license to use the Baofeng DR-1801 DMR Walkie Talkie - Dual...?

It depends on the band. FRS radios need no license in the US, while GMRS requires a $35 family license from the FCC. If the model is a commercial or amateur radio, a license or a business frequency is required. When in doubt, check the frequency range printed on the back label.
